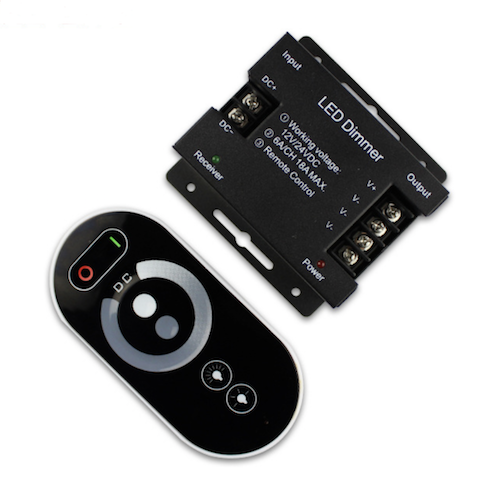

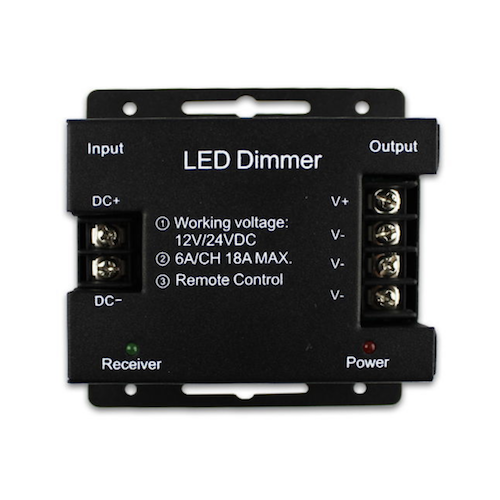

Controller
|
Working temperature |
-20-60℃ |
|
Supply voltage |
DC5V-24V |
|
Output |
3 channels |
|
Connection mode |
common anode |
|
External dimension |
L83ΧW79ΧH33mm |
|
Packing size |
L205ΧW135ΧH47 mm |
|
Net weight |
227g |
|
Gross weight |
379g |
|
Static power consumption |
<1W |
|
Output current |
<18A (each channel) |
|
Output power |
12V:<216W, 24V:<432W |

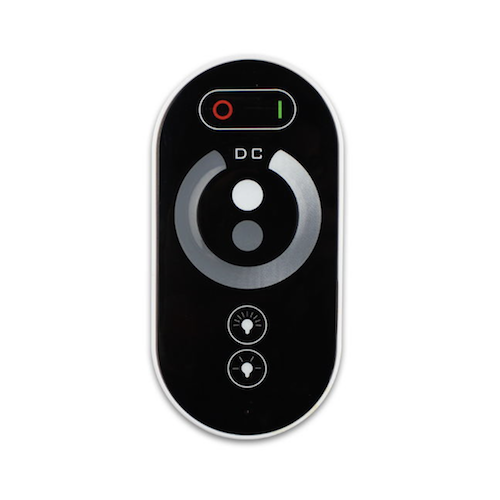

Touch Remote Control
|
Working temperature |
-30-60℃ |
|
Power supply mode |
AAA * 3 |
|
Supply voltage |
3V |
|
Standby power consumption |
0.09mW |
|
Remote distance |
>20m |
